一 功能描述 - 16 路报警信号监测 - 8 路控制电源输出 - SIREN 为报警输出

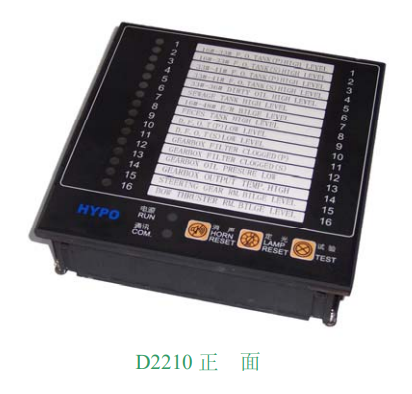

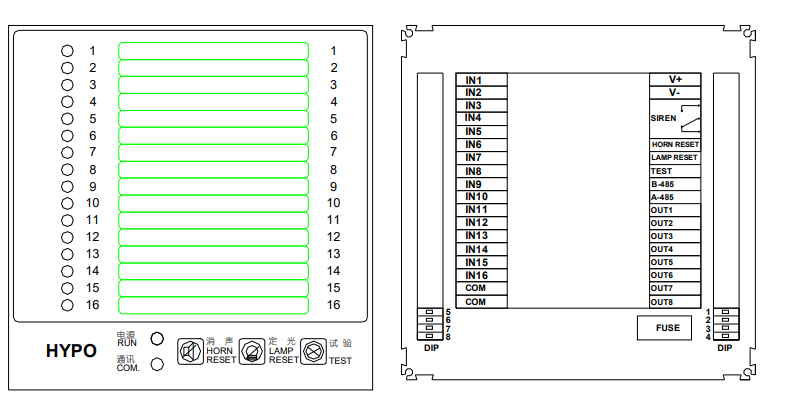

外观及接线如下： 备注： *COM 为 16 路输入,8 路输出,消声,定光,试验键的公共端.

 *IN1~IN16 为报警点的输入端, IN1~IN8 报警时对应输出为 OUT1~OUT8.

IN1-2~IN15-16 报警时对 应输出为 OUT1-2~OUT15-16 *RS485 通讯的连接方法 485A-485A,485B-485B

 报警输入: 16 路无源开关量输入,每个通道经过设置后响应常开或常闭报警

 报警屏蔽: 如果某道被屏蔽,则该通道不响应任何报警信号.

1. Functional description

-                       - 16 groups alarms monitor

-                       - 8 groups controls power sources output

-                       - siren is reports to the police the output

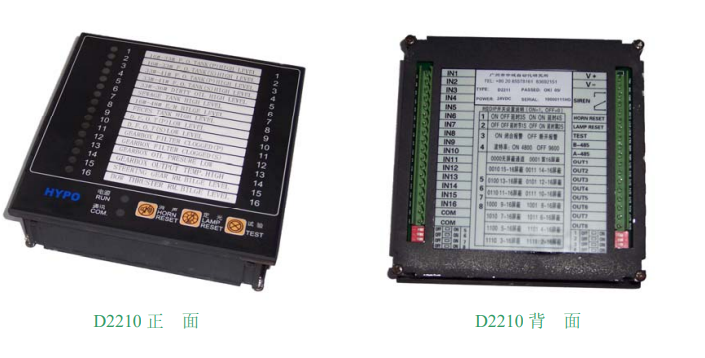

Outward appearance and wiring as follows:

Note: *COM is 16 groups inputs, 8 groups outputs, the noise elimination, the fixed light, experiments the key the public end.

*IN1~IN16 is reports to the police a input end, IN1~IN18 reports to the police when corresponds the output is OUT1-2~OUT15-16.

*RS485 communication connection method 485A-485A, 485B-485B
